High Tensile Strength Pp Biaxial Geogrid For Road Construction And Other Project
Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.
Biaxial Plastic Geogrid Introduction
Bidirectional plastic geogrid is made of high molecular polymer through extrusion, forming plate, punching process and then longitudinal and transverse tension. The material has great tensile strength in both longitudinal and transverse directions. This kind of structure can also provide a more effective chain system for bearing and diffusing force in soil, which is suitable for foundation reinforcement with large area permanent bearing.
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters |
| Roll Length | 50 meters |
Plastic Geogrid Mesh Feature:
1. High tensile strength at both longitudinal and transverse direction.
2. High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
3. High mechanic damage resistance and durability and large friction factor with sandy stone.
4. Improve bearing force of foundation and increase diffusion angle.
Application
1. It is suitable for subgrade reinforcement and Pavement Reinforcement of various highways, railways and airports.
2. It is suitable for foundation reinforcement of permanent bearing in large parking lot and wharf freight yard.
3. It is suitable for slope protection of railway and highway.
Suitable culvert reinforcement.
4. The false roof support engineering of underground mining face in coal mine.
5. Earth rock anchorage of underground civil engineering and traffic road engineering.
Workshop
Welcome to consult.
I am Leo, hope we can be your best supplier.
Whatsapp/Wechat: 008615030705799
Phone: 008615031817097
Product Tags:
|
|

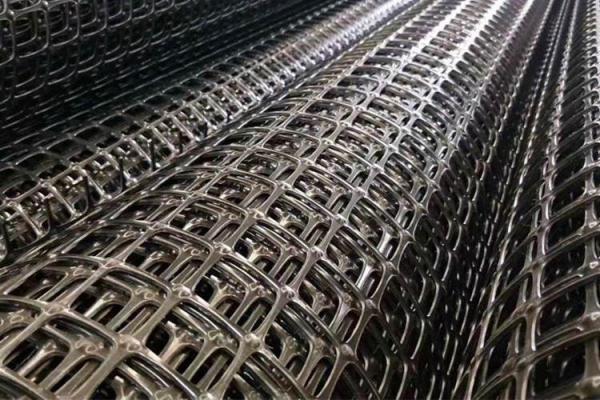

High Tensile Strength Pp Biaxial Plastic Geogrid Mesh Images
|
